WaveBooster N-Male Barrel Connector for commercial signal booster

No reviews yet

£10 Ex Vat

SKU : WBIEC-SMNM400

logo

  • Weather-resistant design for indoor and outdoor durability

  • High-quality, low-loss connector ensures maximum signal performance

  • N-Male to N-Male configuration for easy compatibility

  • Built to deliver reliable, long-lasting connections in…

Need help finding the right booster?
Speak to our Expert
02045788432
EU Compliants
Local UK Support
2 Years Manufacturer Warranty
30 Days Money Back
Fast Free Shipping

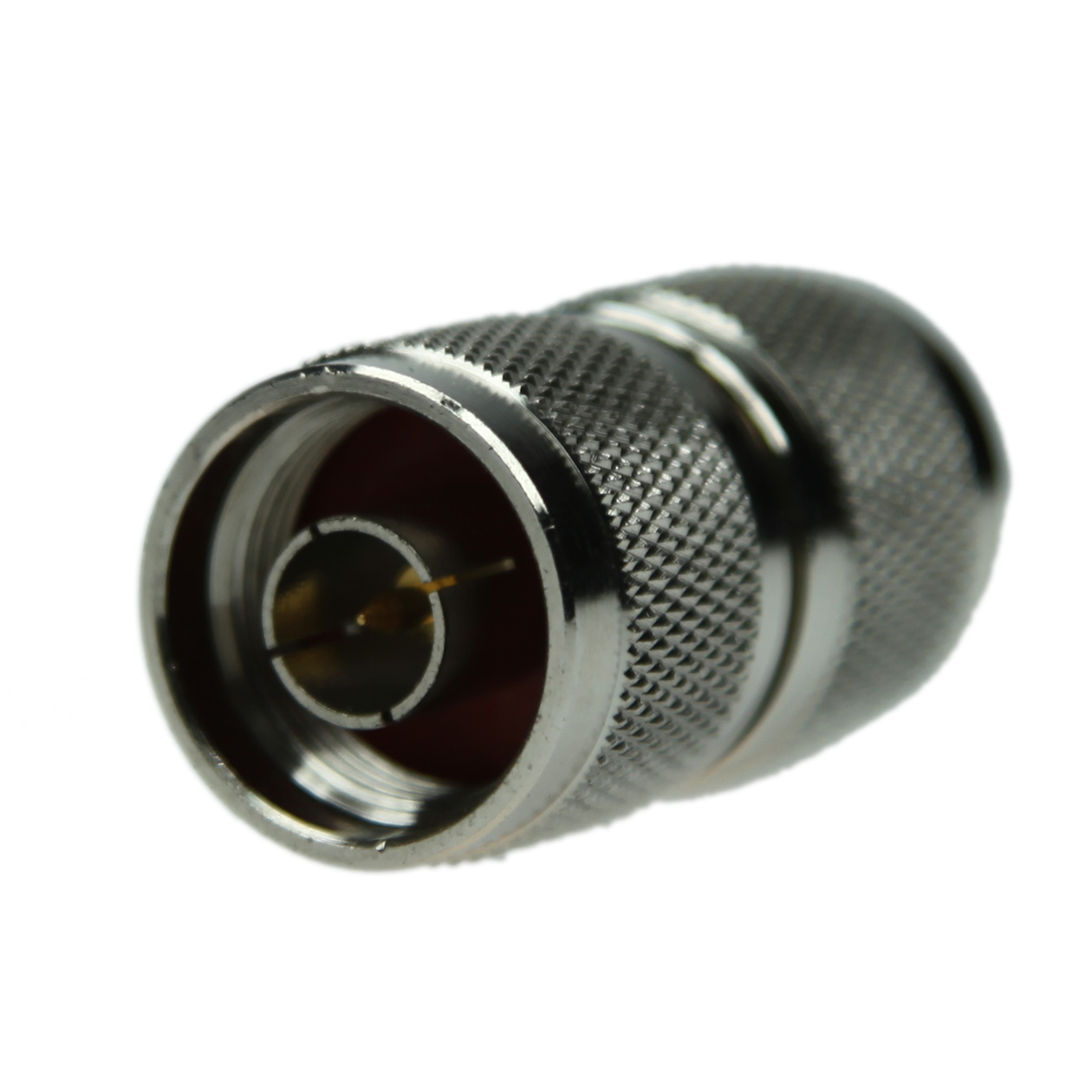

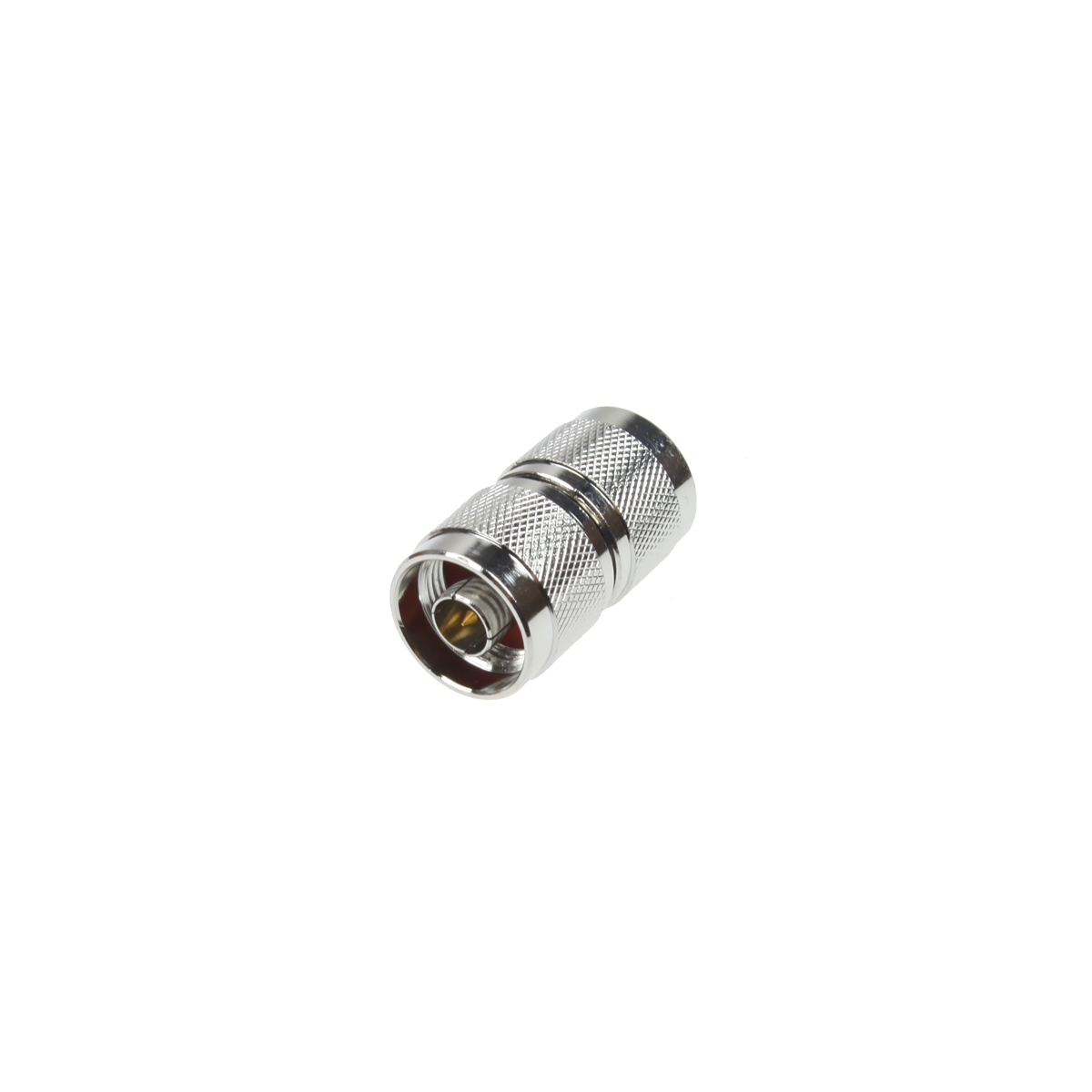

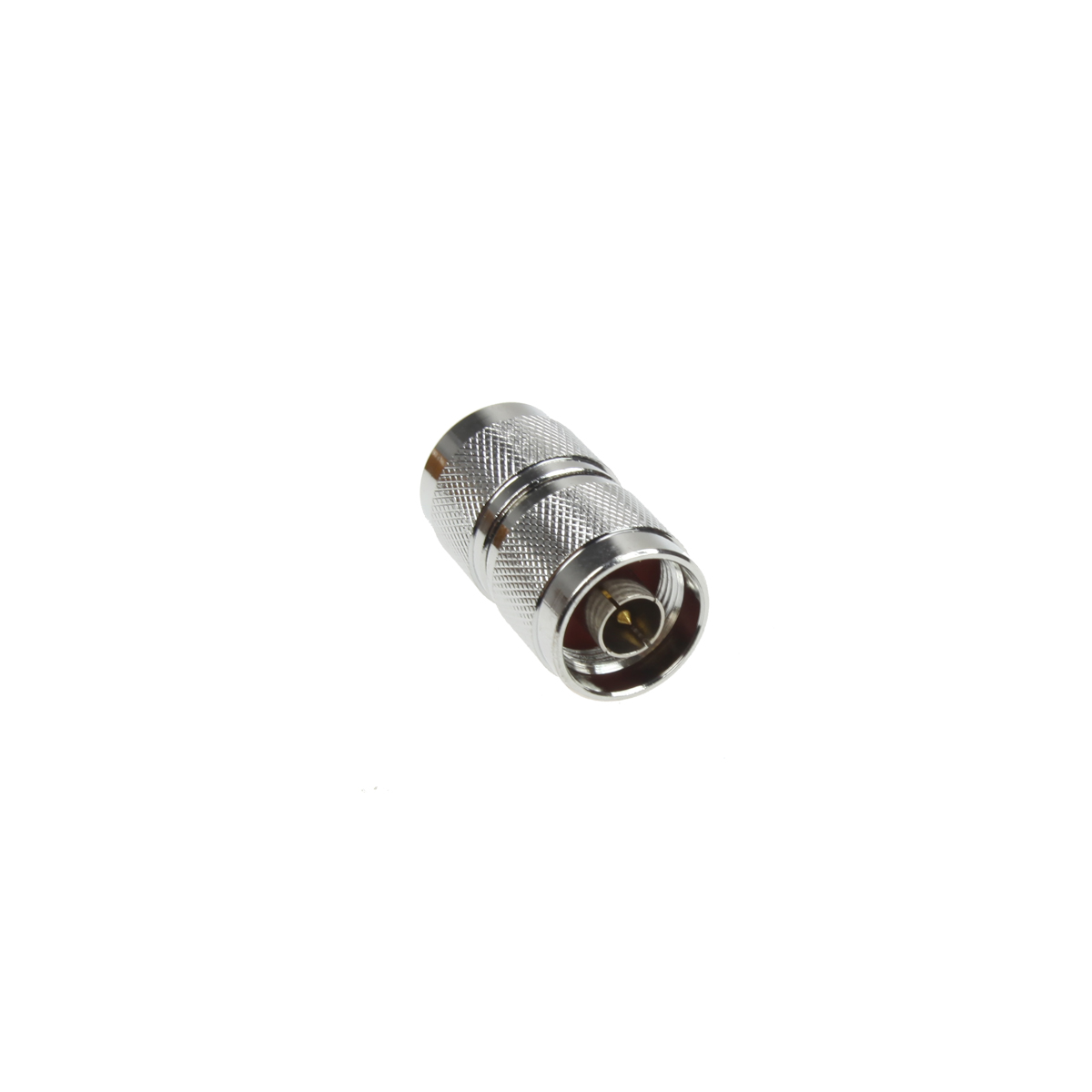

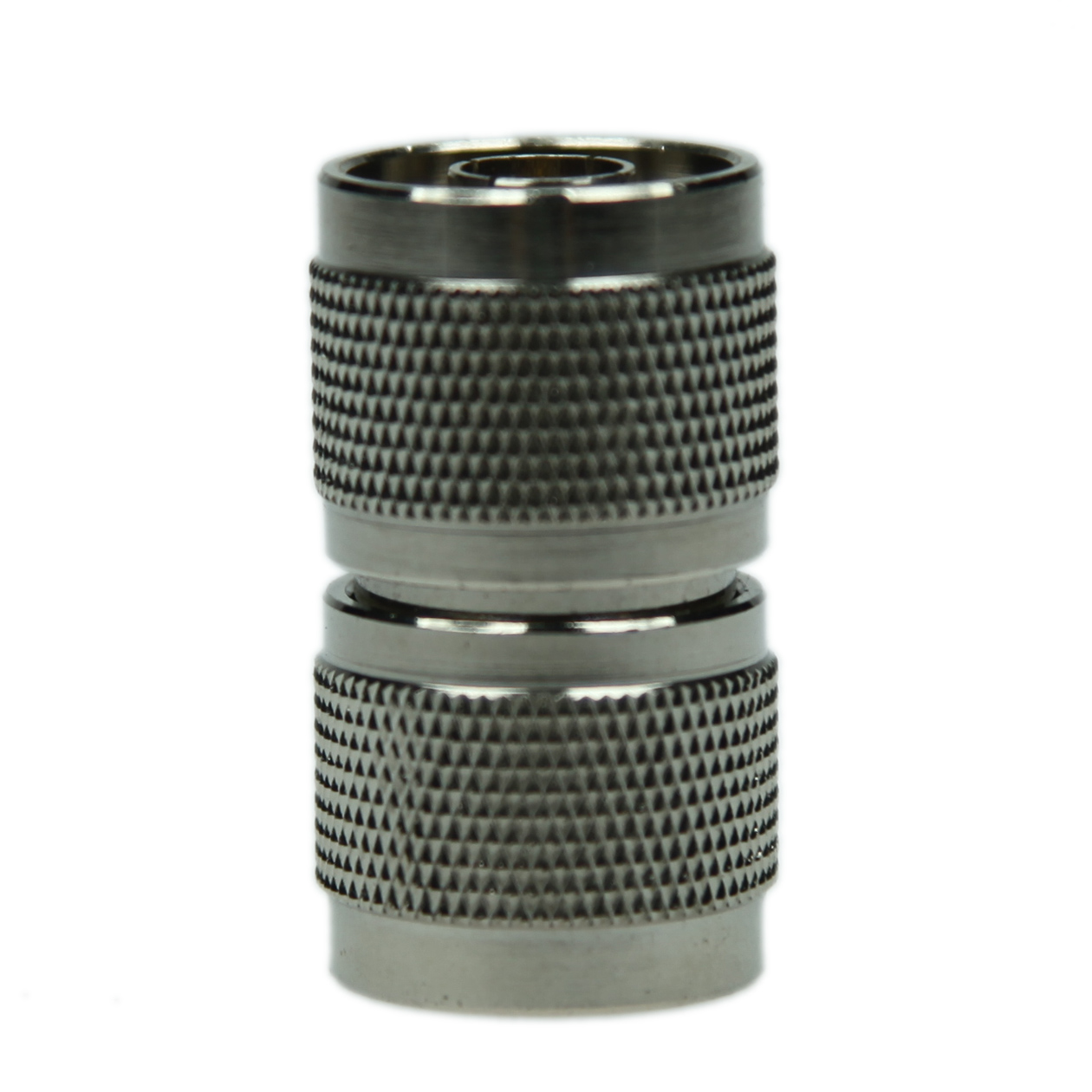

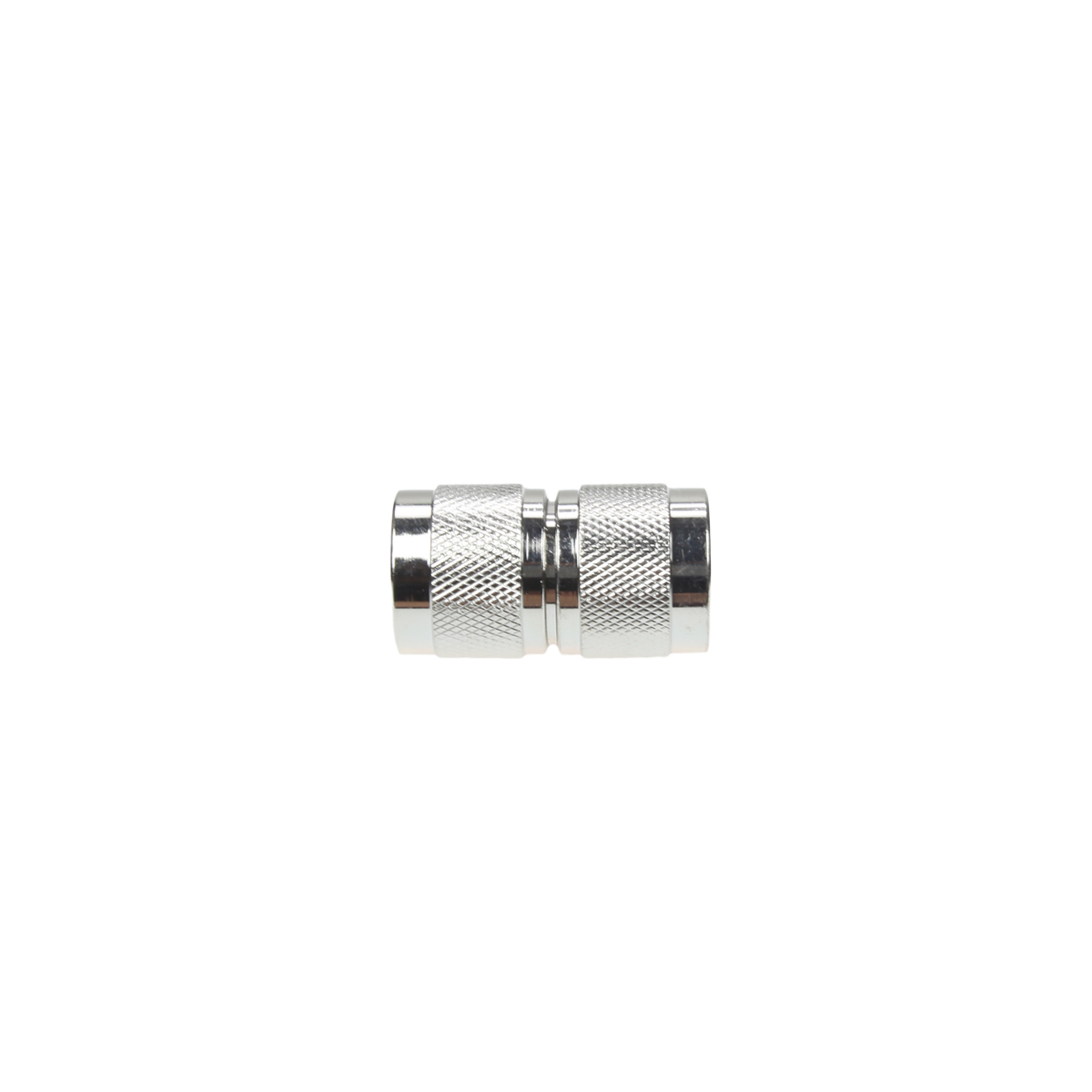

WaveBooster N-Male Barrel Connector for commercial signal booster

Easily connect and extend N-female cables, antennas, or devices with the Waveboosters N-Male to N-Male Barrel Connector. Designed for secure, low-loss connections, it ensures optimal signal strength and reliable performance across all RF applications.

Key Features

  • Weather-resistant design for outdoor durability

  • High-quality, low-loss connector ensures maximum signal performance

  • N-Male to N-Male configuration for easy compatibility

  • Built to deliver reliable, long-lasting connections in all conditions



Insert hole Material
Bronze
Housing Material
Brass
Screw sleeve Material
Brass
Impedance
50Ω
Frequency band
DC-3GHz
Rated operating voltage
335V
Contact resistance:
--Inner conductor
≤ 3mΩ
--Outer conductor
≤ 2.5mΩ
Insulation resistance
≥5000 MΩ
Medium withstand voltage
1000V
Inner conductor separation force
N>0.57N
Mechanical life
>500 times (12 times per minute)
Connecting nut torque
SMA recommended 0.68~1.13N. m
Material of Coaxial Cable
RG187
Ambient temperature
-55~155°C
Relative humidity
95% at +40°C
