Wave 3 Way Low Loss Micro Stripe Signal Splitter

No reviews yet

Original price was: £45.Current price is: £40. Ex Vat

11% OFF
SKU : WBIES-MS3
  • Full band (698-2700 MHz)
  • Retransmits signal in 3 directions
  • Easy to install
  • Meets the international technical standards
Need help finding the right booster?
Speak to our Expert
02045788432
EU Compliants
Local UK Support
2 Years Manufacturer Warranty
30 Days Money Back
Fast Free Shipping

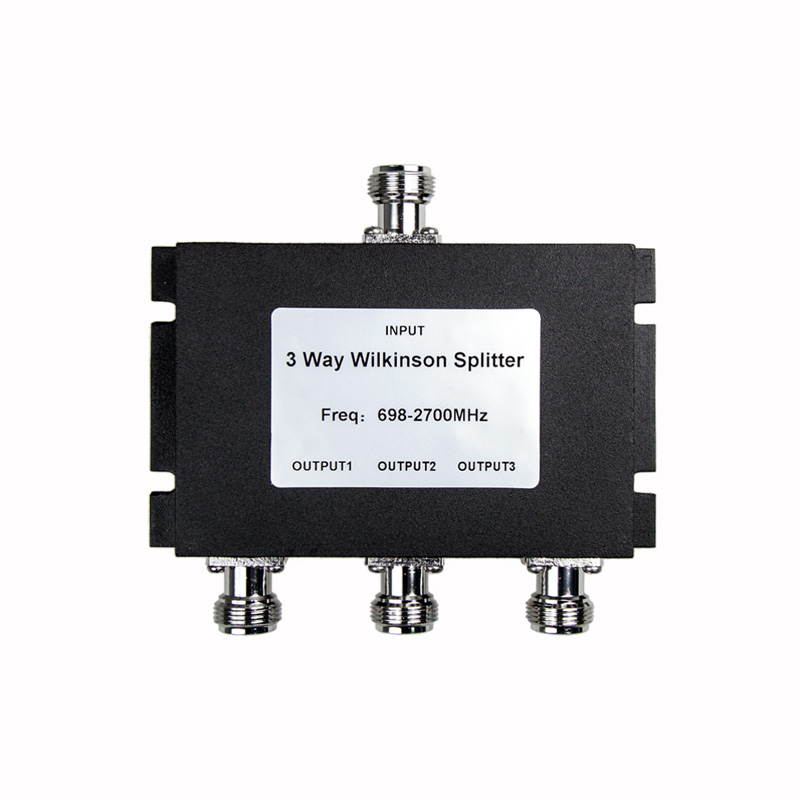

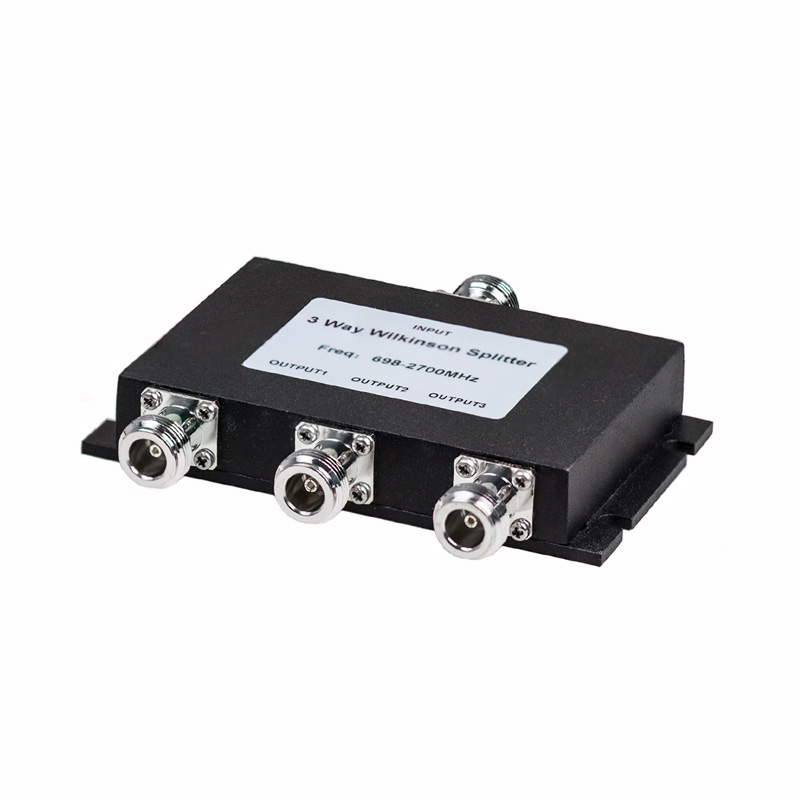

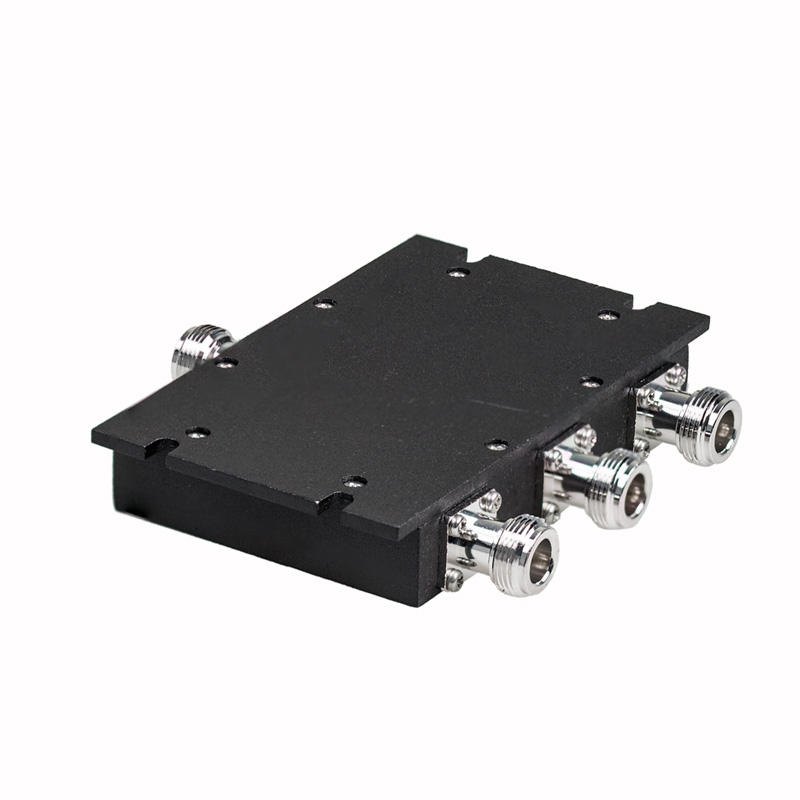

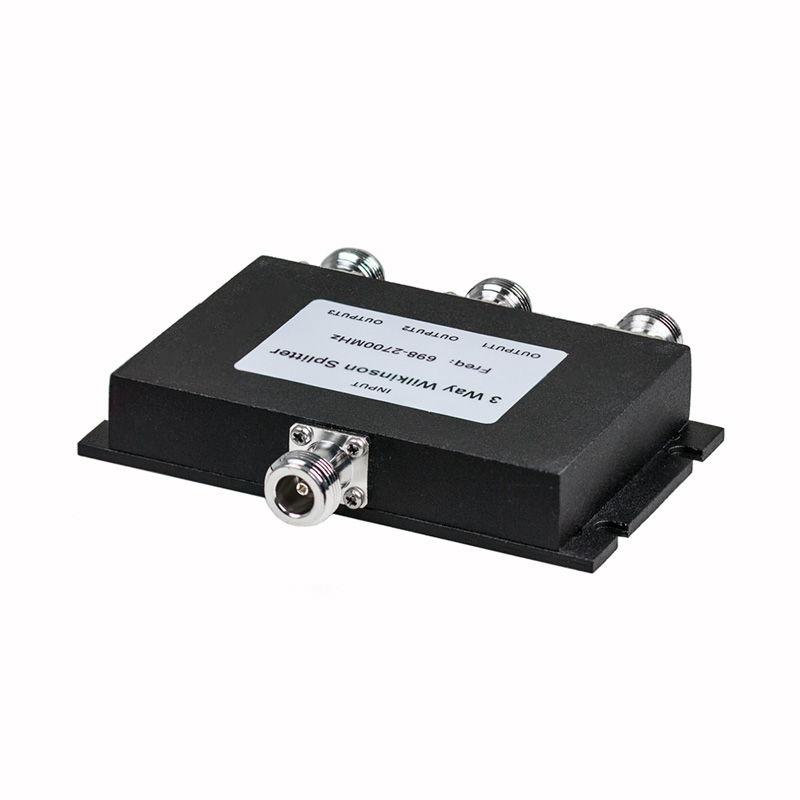

3 Way Low Loss Micro Stripe Splitter

WaveBooster 3 way splitter distributes an amplified signal to three indoor antennas with excellent efficiency, making it ideal for providing balanced coverage across multiple areas. Each antenna port incurs only a 0.5 dB signal loss, ensuring strong and consistent performance. The splitter supports full-band systems, covering frequencies from 698 MHz to 3600 MHz.

It is important to always speak to our Technical Support Team before purchasing any item/items you are not sure.

logo



  • Full band (698-3600 MHz)
  • Retransmits signal in 3 directions
  • Easy to install
  • Low loss Signal Splitter
  • Meets the international technical standards
SKU
WBIE-WS3
Type
3 Ways Wilkinson Splitter
Frequency Range
698-2700 MHz
Insertion Loss
0.5 dB
Isolation
22 dB
VSWR
1.5:1
Maximum Power
20W
Connectors
N-Female
Dimensions (with connector)
3.5 x 3.9 inch
Weight
8.4 oz
Operating Temperature -36-80
-36-80

Need help with Installation?

Our expert installers will get you sorted
Get In Touch

Frequently Asked Questions

It’s a device that boosts your current weak 2G 3G 4G AND 5G signals and then delivers the stronger signal to your cell phone.

  1. Outside Antenna: Pulls in the existing signal from the cell tower and sends it to the amplifier.
  2. Amplifier: Boosts that signal multiple times and sends it to the inside antenna.
  3. Inside Antenna: Broadcasts the boosted signal to the area in need.

Yes. Cell phone signal boosters work with ALL mobile phones that use any variation of 3G or 4G and service.

Yes. Our boosters work with all major North American carriers in Ireland (Vodafone,Eir, Three,Lyca,Tesco,48 Mobile, Clear Mobile,sky and Virgin.). For a more thorough list please email us at [email protected]

For a complete explanation of frequencies and a simple chart, see our Frequencies by Provider article.

Cell phone signal boosters generally come in two categories: for buildings such as homes and offices and for vehicles such as cars, Trucks and boats.

Absolutely.

Signal boosters for homes and offices boost 3G & 4G LTE and 5G signals inside the building. Although you may get some coverage outside the building, they are not designed for this purpose. They are generally fixed installations and powerful performers.

Signal boosters for cars, trucks, RVs, and boats boost 3G & 4G LTE and 5G signals inside your vehicle (usually a range of 5-8 feet). Some units can be used indoors with additional accessory kits.

Whether you’re looking for something affordable, commercial-grade, or custom, we provide a variety of solutions. Start with our Buyer’s Guide to get our best recommendations.

No, you don’t need an internet connection, but you do need an existing cell phone signal. If there is no existing signal, then you’re in a no service dead zone, meaning the amplifier cannot boost what isn’t there.

WaveBoosters is a trusted industry leader in the supply of premium mobile signal booster solutions, representing a wide portfolio of top manufacturers. Recognised as Ireland’s leading provider of mobile phone signal boosters, we operate from our head office in Dublin, with a dedicated warehouse and distribution centre in Dundalk to ensure fast and reliable delivery nationwide.

Our philosophy is built on three guiding principles:

  • Customer Commitment: We are dedicated to exceeding customer expectations with every interaction.
  • Integrity First: Sincerity, honesty, and transparency define the way we do business.
  • Excellence in Service: From same-day free shipping and a 30-day money-back guarantee to industry-leading customer support, we deliver operational efficiency without compromise.

WaveBoosters takes pride in empowering our customers with dependable connectivity solutions, while upholding values that place people and service at the heart of everything we do.
